In today’s society, led strips are widely used in modern life. Given the increase in outdoor usage scenarios, the waterproof level of light strips has also been enhanced accordingly.

In this guide, I will show you the definition, types, common waterproof materials, waterproof structure, waterproof IP comparison, selections and related questions about waterproof led strips.

1. LED Strip Waterproof IP Rating Overview

(1) Definition

The waterproof rating of LED strips refers to their standardized classification of protection against external moisture and dust ingress, typically denoted by the IP (Ingress Protection) rating.

An IP rating consists of two digits, indicating protection against solid particles and liquids, respectively.

(2) Structure of IP Ratings

First Digit (Solid Particle Protection): Ranges from 0 to 6, indicating resistance to solids (e.g., dust, debris).

Second Digit (Liquid Protection): Ranges from 0 to 9, indicating resistance to liquids (e.g., drips, sprays, immersion).

2. LED Strip Waterproof IP Rating Types

(1) Non-Waterproof LED Strips (IP20/IP33)

Description: Designed for indoor use in dry environments with no exposure to moisture.

Features:

Minimal or no protective coating.

Lightweight and cost-effective.

Applications: Home interiors, cabinets, or decorative lighting.

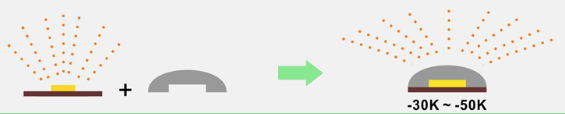

(2) Drip-Proof LED Strips (IP54/IP55)

Description: Protected against low-pressure water jets and dust.

Construction:

Surface Coating: Silicone or epoxy resin is applied to the PCB to seal components.

Limitations: Not fully submersible; suitable for damp areas like kitchens or bathrooms.

Applications: Outdoor signage (covered areas), indoor humid zones.

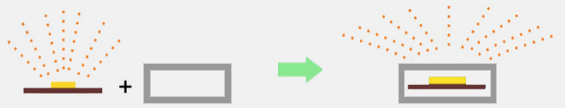

(3) Water-Resistant LED Strips (IP65)

Description: Resistant to dust and water jets from any direction.

Construction:

Semi-Casing: A silicone or PVC tube partially encases the strip, leaving gaps for heat dissipation.

Material: Often uses epoxy resin for flexibility and moderate waterproofing.

Applications: Outdoor installations (e.g., garden paths, patios) with indirect rain exposure.

(4) Fully Waterproof LED Strips (IP67/IP68)

Description: Fully sealed against dust and prolonged submersion.

Construction:

Full Encapsulation: The strip is entirely enclosed in a silicone or PVC sleeve.

Subtypes:

Sleeve-Only (IP67): Submersible up to 1 meter for 30 minutes. Basic waterproofing with a hollow tube (less durable).

Potting (IP68): Fully submersible (depth varies by manufacturer, typically ≥1.5 meters). Silicone or epoxy resin is injected into the sleeve for complete sealing, offering superior moisture resistance but reduced flexibility 139.

Applications: Submerged lighting (e.g., pools, fountains), harsh outdoor environments.

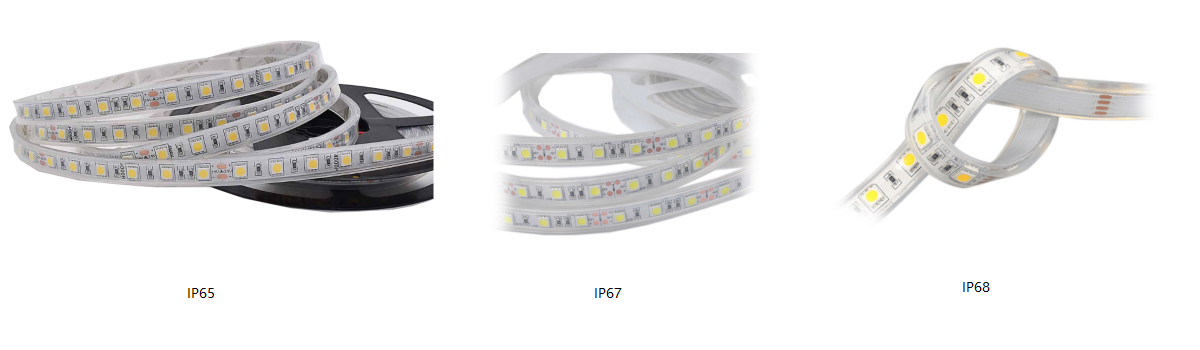

3. Common materials used in waterproof LED strip

(1) Epoxy Resin / PU Potting Compounds (Primarily IP65):

It is low cost but prone to yellowing after 2–3 years outdoors. Reduced flexibility post-curing makes them suitable for short-term outdoor or humid indoor applications.

(2) Silicone-Based Systems:

Coating (IP65): A thin silicone layer coats the PCB, offering UV resistance and flexibility for curved installations (e.g., furniture edges).

Sleeve (IP67): Thick-walled silicone tubing provides physical protection, wear resistance, and tolerance to minor impacts (e.g., under garden pavers).

Potting Compound (IP68): High-grade silicone filler withstands extreme temperatures (-45°C to 200°C) and seawater corrosion, ideal for deep-sea or high-temperature industrial environments.

(3) Nano-Coating (e.g., Parylene) (IP65+):

A 10–100μm ultra-thin film formed via chemical vapor deposition (CVD) penetrates micro-gaps (e.g., solder joints) without impeding heat dissipation. Used in precision equipment like marine lighting.

4. Waterproof LED strip structure

(1) Heat Shrink Tubing Sealing:

Heat-shrink tubing wraps connection points and is paired with silicone sealant at ends to achieve IP65+ protection. Commonly used in DIY outdoor wiring.

(2) Waterproof Connectors:

Molded silicone connectors with O-rings provide IP67-rated dust and water resistance, eliminating risks of exposed solder joints. Suited for scenarios requiring frequent disassembly.

(3) Aluminum Waterproof Channels:

Extruded aluminum profiles integrated with silicone gaskets deliver dual IP67 protection and heat dissipation. The preferred choice for high-power LED strips.

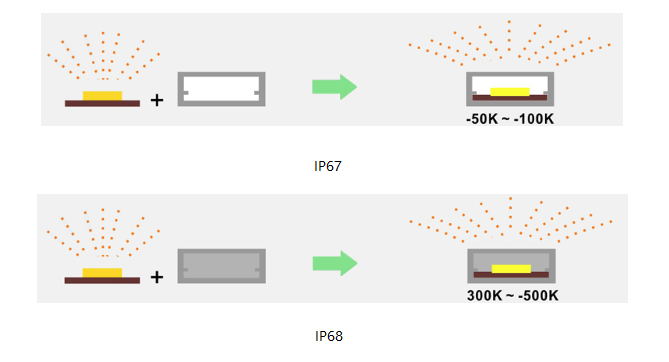

5. Key Differences between IP67 and IP68 LED Strips

The distinction between IP67 and IP68 LED strips lies in their water immersion resistance and application-specific durability. Both share a dustproof rating (IP6X), but their liquid protection capabilities differ significantly.

(1) Water Immersion Resistance

IP Rating	Protection Level	Test Conditions
IP67	Temporary immersion in water (up to 1 meter depth) for 30 minutes.	Submerged in 1m of water for 30 minutes.
IP68	Continuous / prolonged immersion in water (exceeding 1 meter depth) as specified by the manufacturer.	Depth and duration vary by product (e.g., 2m for 24 hours or 3m indefinitely).

(2) Construction and Sealing

IP67:

Uses silicone sleeves or epoxy resin potting to create a watertight seal.

Suitable for environments with occasional submersion (e.g., garden ponds, outdoor fountains).

IP68:

Employs high-grade potting compounds (e.g., silicone gel) for full encapsulation.

Designed for permanent underwater use (e.g., pools, aquariums, marine lighting).

(3) Application Scenarios

(4) Durability and Cost

IP67:

Lower cost (20–30% cheaper than IP68).

Limited to intermittent water exposure; prolonged submersion risks seal failure.

IP68:

Higher upfront cost but longer lifespan in extreme conditions.

Resists saltwater, chemicals, and high-pressure cleaning.

(5) Installation Considerations

IP67:

Avoid direct high-pressure water jets (e.g., power washers).

Ensure connectors are sealed with silicone grease.

IP68:

Verify manufacturer-defined immersion limits (e.g., depth/duration).

Use corrosion-resistant materials (e.g., stainless steel mounts) for saltwater applications.

6. Guidelines for Selecting IP Ratings

(1) Dry Indoor Environments (e.g., bedrooms, offices):

IP20/IP33 (cost-effective, no waterproofing needed).

(2) Humid Indoor Areas (e.g., kitchens, bathrooms):

IP54/IP55 (resists splashes and steam).

(3) Semi-Protected Outdoor Areas (e.g., balconies, covered walkways):

IP65 (resists rainwater splashes, avoids direct exposure).

(4) Unprotected/Extreme Outdoor Environments (e.g., gardens, building facades):

IP67/IP68 (withstands heavy rain, hail, or prolonged moisture).

(5) Submerged or High-Pressure Settings (e.g., pools, industrial facilities):

IP68 (fully sealed, resistant to high-pressure impacts).

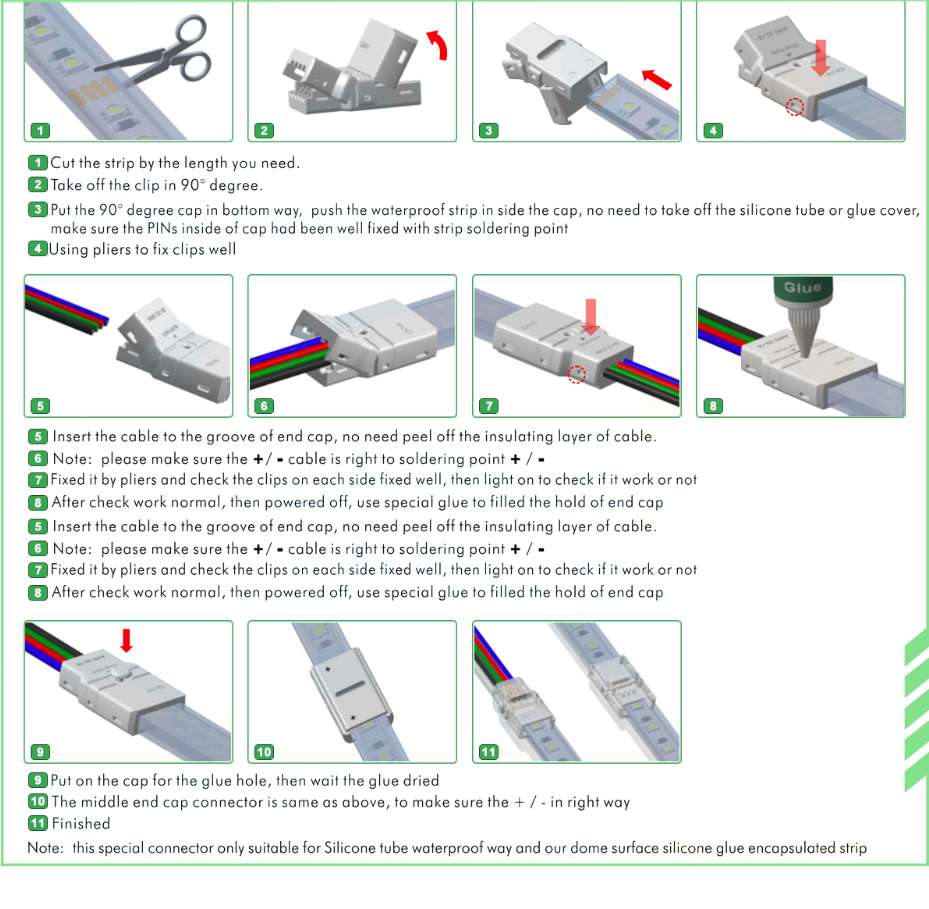

7. Silicone glue encapsulated waterproof LED strips connection

8. Waterproof LED strips FAQS

9. Summary

Waterproof light strips are poised for sustained growth, driven by technological advancements, urbanization, and policy support. While challenges like cost and competition persist, innovation in materials and smart technologies will unlock new applications in smart cities, cultural tourism, and underwater environments. Companies that prioritize R&D, sustainability, and niche market strategies are likely to lead this dynamic industry.

What type of LEDs do you first think of when discussing the LED industry? Let me tell you the answer. SMD LED with built-in IC. It is the basis of the optoelectronics sector, with a penetration rate that exceeds 75% in the consumer electronics, automotive, industrial displays and other areas. This is an incredible proportion!

1. SMD LEDs with Integrated IC Definition

Surface-mountable chips-sized SMD LEDs with Built-in IC are miniaturized optoelectronic devices that integrate a Light Emitting Diode with an integrated circuit. Surface Mount Technology (SMT), which allows the LEDs to be directly soldered on PCBs, creates a compact, trifunctional device that combines photonic emission, electronic drive, and intelligent controls in a single, unified structure.

2. Types of SMD LED with Built-In IC

2.1 Classification According to Communication Protocol

(1) Single Wire Addressable: uses a single dataline for control.

Example: WS2812 SMD led; WS2813 SMD led; WS2801Smd LED; WS2811Smd Led, etc.

(2) SPI: High speed communication with separate clock lines and data lines to ensure precise timing.

Examples: APA102, APA107, LPD8806

(3) I²C: Two-wire Protocol for Multi-Device Control on a Shared Bus.

Examples: PCA9685-driven modules

2.2 Classification According to Color Capabilities

(1) RGB: Red Green and Blue LEDs, each with its own control to mix colors.

Applications: Displays, decorative lighting

(2) RGBW: adds a white LED to improve color accuracy and light output.

Architectural Lighting

(3) Tunable White: Dual white LEDs allow for color temperature adjustment (e.g. 2700K-6500K).

Human-centric Lighting

(4) Single Color: Monochromatic LEDs (e.g. white, red, and blue) with brightness control.

Signage, indicators and other applications

2.3 Classification by Size and form Factor:

The following are the most common: 5050, 2835 (3535), 3528 (3528), 2427, 4020 (3512), 4246,4236,4242, 3725 (3725), EC3210R (2222), EC10, and so on.

As an example:

3528

Dimensions: 3.5 by 2.8 mm. Compact size and low power. Ideal for dense installations.

5050

Dimensions: 5 x 5 mm. Common in RGB strips.

CSP (Chip-Scale Package)

Dimensions: 1.0×1.0mm. Wearables and AR/VR displays.

2.4 Classification of Features by Application

(1) Automotive: AEC Q102 certified, wide temperature range from -40degC up to +125degC.

Use Cases: Interior lighting, headlights

(2) Industrial: High durability with IP67+ waterproofing and surge protection.

Use Cases: Machine vision, outdoor lighting

(3) Medical: Operation without flicker, high CRI >90 and low EMI.

Use Cases : Surgical Lighting, Diagnostics

(4) Decorative: Addressable Control, Dynamic Effects (e.g., Gradients, Chasing, etc.).

Use Cases: LED Strips, stage lighting

2.5 Classification of Drive Current Specifications

(1) Low-Current (5-20mA):

– Operating current: 5-20mA

– Voltage range: 3-5V DC

– Ultra low power consumption (<0.1W).

– Miniaturized CSP/COB packaging.

– Efficiency: >85% @ 5mA. Ideal for devices powered by batteries.

– Control: Single-wire Protocol or I²C.

Applications: Ideal in low-power scenarios that require strict energy efficiency. For example, small indicator lights and status LEDs on electronic devices (e.g. smart bracelets or remote controls).

Characteristics: Low luminous intensity, but sufficient to perform basic functions. Minimizes power consumption.

Industry Standard: IEC 6234 (low power efficiency)

(2) Mid-Current (50-150mA):

– Operating current: 50 to 150mA

– Voltage range: 12-24V DC

– Integrated PWM dimming (1-50kHz)

– Thermal resistance 5degC/W

– Efficiency: >90% at 12V input.

– Thermal Design: PCBs with aluminum cores and ceramic substrates.

Commonly used for general indoor and decorative illumination.

Characteristics: This category is the most widely used because it can balance brightness, energy consumption and luminous efficacy.

Industry Standard: EN 5515.1 (EMC Compliance)

(3) High-Current (200mA-1A):

– Operating current: 200mA-1A

– Voltage range: 24V to 48V DC

– Multi-chip

– Active Thermal Management (TJ Monitoring)

– Certifications AEC-Q102 automotive, UL-8750 high-power LEDs.

– Driver Integration: Built-in buck/boost converters.

Applications: Automotive headlights and high-brightness applications.

Characteristics: The high current can generate significant heat, requiring robust thermal management to ensure reliable operation and long-term durability.

Industry Standard: AEC Q102 (Automotive), IEC 600601-2-41

2.6 Classification by Control Features

(1) Addressable: Individual LED control via data protocols (e.g., WS2812B).

Example: LED matrices and art installations.

(2) Non Addressable: Group Control with PWM Dimming, Simpler Circuitry.

Example: Basic indicators and backlighting.

(3) SmartLEDs: IoT enabled with Wi-Fi/Bluetooth integration and apps (e.g. Philips Hue).

Example: Smart home lighting

2.7 Directional Light Emission:

(1) Front Emission:

The lamp beads have their front sides mounted on the PCB. Light isemitted perpendicularly to the PCB ensuring a viewing angle all around of about 140deg-160deg.

(2) Side Emission:

The PCB is mounted on one side of the lamp beads, and the light is emitted in a parallel direction to the PCB. The light is then redirected by components such as a light guide. These screens have a higher transmittance because the circuit board prevents part of the light from reaching the screen, which ensures only one viewing angle.

3. Technical Specifications of SMD LEDs with Built-in IC

(1) High Integrity

Reduces PCB footprint over 60% by eliminating peripheral driver circuits that are required for conventional LEDs.

Supports CSP or COB packaging with dimensions as small as 1.0×0.5mm (0404 form factor).

(2) Intelligent Control

The integrated IC allows:

Digital protocol control (I2C, Single-wire Interface, SPI)

Analog dimming( 0-10V linear regulation).

Functionalities that are advanced:

16-bit grayscale control (65,536 levels).

Dynamic lighting effects: breathing, gradient, strobe.

Temperature compensation in real-time.

(3) Energy Efficiency and Reliability

Protection mechanisms embedded in the device:

The (OVP/OCP/OTP ) safeguards are used.

The MTBF (Mean time between failures) of the product is greater than 50,000 hours.

Energy efficiency >90%. A 15-20% improvement compared to conventional solutions.

(4) Communication & Scalability

The Cascading Control Architecture allows for the single-bus control of hundreds of LEDs.

IoT protocol compatibility for intelligent lighting systems (DALI and Zigbee).

4. SMD LED with Traditional Structure

(1) Light-Emitting Layer:

LED Chip: GaN based blue LED (450nm wavelength), combined with YAG phosphor to emit white light (CCT range of 2700K-6500K).

Luminous Efficacy : up to 180 lm/W @350mA drive, CCT4000K, according to IES LM80 testing protocol.

(2) Control Layer:

Driver ICs integrating critical circuits

Constant current source (+-1% accuracy, JEDEC JESD22-A101 qualified)

PWM dimming module (1kHz-50kHz frequency range, IEEE 1789 compliant)

Communication protocol decoder (I2C/SPI/single-wire interface, IEC 61131-2 standard) etc.

Protection Circuitry:

Triple-safeguard architecture:

Overvoltage Protection (OVP, 40V clamp voltage)

Overcurrent Protection (OCP): +-5% of current threshold.

Thermal Shutdown (TSD) trigger point is 150degC.

(3) Package Structure:

Substrate Materials:

High-Temperature Cofired Ceramic (CTE 6.5 ppm/degC).

High-thermal-conductivity epoxy resin (>2.5 W/m*K, UL 94 V-0 flame-rated).

Optical Design

The integrated micro-lens (MLA) includes:

Beam angle: 120deg +-10% (IESNA LM-79 angular distribution)

Light uniformity: >90% CIE 015:2018 spatial homogeneity criteria.

5. SMD LED with IC Core Functions

(1) External Driver-Free Operation:

Built-in constant current ICs directly match 3-5V supply voltage, eliminating the need for external driver circuits.

(2) Dynamic Lighting Effects:

RGB color-mixing ICs can support up to 16.7 million colours with a response time of 1 ms.

(3) Environment Adaptability:

Automatic brightness adjustment is possible with integrated light sensors.

(4) High-Density Displays:

The ultra-compact driver ICs allow for pixel pitches of P0.4.

6. SMD LED with Built-in IC Applications

(1) It is widely used by Consumer Electronics, such as flash in smart phones and wearable devices.

(2) It’s commonly used in Automotive Lighting such as Matrix Headlights and Cockpit Atmosphere Lights.

(3) It’s a common feature in Industrial Displays such as Mini Led Backlight.

(4) It can also be used in IoT, Smart Cities and smart street lighting.

7. Technical Advantages of SMD LEDs with Built-in IC

(1) Circuit Complexity:

The SMD LED with built-in IC eliminates external components by direct surface mounting. (IPC-2221A-compliant). Its BOM costs have been reduced by 45%. Conventional LED solutions use external driver circuits such as buck converters and current-limiting resistances that occupy >30% PCB space. This is a 68% decrease in board area utilization compared to discrete LED implementations.

(2) Control Precision:

The SMD LED with built-in IC has a digital dimming precision of +-0.5% (16 bit resolution), while the conventional LED has an analog dimming of +-10%.

(3) Production Yield:

The SMD LED with Integrated IC uses fully automated Surface Mount Technology (SMT) processes. This technology achieves component mounting precisions of +0.025mm, and throughput rates in excess of 80,000 CPH.

The majority of conventional LED products are manufactured by automated reflow-soldering processes. Production yields for these products is approximately 92%. (IPC A-610 Class 2, compliant). This is due to inherent limitations with component alignment accuracy (within a tolerance of +-0.1mm) and thermal profiles (J-STD 020 temperature profile adhesion with a +-5degC range).

SMD LEDs with built-in ICs are packaged fully automatically, and have a failure rate as low as 50ppm compared to the 300-500ppm of conventional LED assembly.

(4) Response Speed:

The SMD LED with built-in IC delivers dimming response time 100ns, as tested by JESD22A114. Conventional LEDs are constrained by an external driver latency of 10ms due to signal conversion delay and PCB trace parasitic effect (per IPC-2223 guidelines on signal integrity).

(5) Reliability:

The SMD LED with built-in IC has a MTBF of over 100,000 hours, which is AEC-Q102 certified for automotive headlamps. Conventional LEDs have a MTBF of 50,000 hours due to the intermetallic compound growth (IMC) at solder interfaces as well as polymer insulation degradation.

(6) Development Cycle:

The development cycle for SMD LEDs with built-in ICs is shorter. The software configuration of SMD LEDs with Built-in IC can be completed in 1-2 days.

8. Manufacturers of SMD LEDs with ICs

The world is full of SMD LEDs with (Built in) IC manufacturers. This list represents the largest number of manufacturers.

Seoul Semiconductor

OSRAM

Nichia

Lumileds

Samsung LED

Worldsemi

Sanan Optoelectronics

HC SemiTek

Jufei Optoelectronics

BOE

…

9. FAQs on SMD LEDs with Built-in ICs

10. Summary

The SMD LED with Integrated IC, by achieving SiP integration at the chip-level, realizes a closed-loop, fully-functional system (power supply, driving and intelligent control) in a 1mm3 footprint. It is a cornerstone for miniaturized intelligent optoelectronic devices and will continue to penetrate cutting-edge areas like AR/VR, biomedical devices and more.

LED strip lighting systems are widely recognized for their energy efficiency, extended operational lifespan, simplified installation, and environmental sustainability. These versatile solutions have become indispensable in applications ranging from architectural illumination and retail merchandising to automotive lighting.

In this guide, we will equip you with essential knowledge about LED strips, covering their definition, core components, operational principles, types, features, cost composition, quality evaluation, selection, powering, connect, installation, maintenance applications, best manufacturers, and advanced troubleshooting methodologies.

1. LED Strip Definition

An LED strip is a linear lighting module utilizing LED (Light-Emitting Diode) technology, consisting of multiple high-efficiency LED emitters arranged on flexible or rigid substrates to form a continuous, elongated structure.

1.1 LED Strip Technical Parameters

1.1.1 Photoelectric Parameters

(1) Luminous Flux‌: The total amount of light emitted by the lamp, with the unit of lumen (lm).

(2) Luminous Intensity: Refers to the amount of light emitted by a source in a particular direction, measured in candelas (cd). The prefix “milli-” (meaning one-thousandth) is used to express smaller values, resulting in millicandela (mcd).

(3) Color Temperature (CCT): Characterizes light chromaticity in Kelvin (K)(From 2200K-18000K):

Warm White: 2700-3500K (relaxed ambiance)

Natural White: 4000-5000K

Cool White: 5000-6500K (task-oriented environments)

Deep Cool White: 8000-12000K

(4) Color Rendering Index (CRI): Measures the ability of the light source to restore the true color of the object, with a value range of 0 – 100. Color Rendering Index (CRI) ≥80 (standard), ≥90 (high-CRI for retail/art), ≥97(Super high)

(5) Luminous Efficacy: Light output efficiency expressed as lumens per watt (lm/W), calculated by dividing total luminous flux by electrical power consumption.

(6) Wavelength Tolerance: ±3nm.

(7) Beam Angle: 30° (spotlight) to 270° (wide diffused).

(8) Brightness Control: PWM dimming (8-bit to 16-bit precision).

1.1.2 Electrical Parameters

(1) Input Voltage: Operational voltage requirements: 3V/5V/12V/24V/36V/48V DC (±10% tolerance)(low voltage input) or 110V/220VAC(high voltage input)

(2) Input Current: The magnitude of the current passing through the LED strip, with the unit of ampere (A) or milliampere (mA). The magnitude of the current is related to the power and voltage of the LED strip. The calculation formula is I=P/V (where I is the current, P is the power, and V is the voltage).

(3) Power: Ranges from 2-46W/m depending on LED density and input voltage and input current configuration.

(4) Max Current per Segment: 0.2–6A (limited by PCB trace width and copper weight).

1.1.3 Mechanical & Structural Parameters

(1) PCB Type:

Flexible (FPC): Polyimide, bend radius >30mm.

Rigid (FR4): 0.6–1.6mm thickness.

Metal-core (MCPCB): An aluminum substrate for thermal management.

(2) LED Density: LED strip density refers to the number of LED chips per meter (LEDs/m), a important parameter influencing brightness, light uniformity, energy consumption, and cost.

(3) Strip Width: LED strip width refers to the physical width of the printed circuit board (PCB) on which the LEDs are mounted, measured in millimeters (MM).

(4) Cuttable Length: The cuttable length of LED strips is determined by segment intervals and total length limitations, which depend on strip type, voltage specifications, and application scenarios.

(5) Bending Radius: The minimum radius at which the LED strip can be bent without damage, with the unit of millimeter (mm). The smaller the bending radius, the better the flexibility of the LED strip.

(6) Ingress Protection Rating (IP): Represents the dust – proof and waterproof ability of the lamp, consisting of two digits. The first digit represents the dust – proof level (0 – 6), and the second digit represents the waterproof level (0 – 8). For example: IP54 or IP65 or IP67 or IP68 (The highest IP).

1.1.4 Power & Signal Integrity

(1) Voltage Drop parameters:

The voltage drop parameter of 24V is better than the 12V.If the input voltage of led strip is 24V,you can connect 10m or more in series.But if the input voltage is 12V,we suggest you connect 5m in series.

(2) Inner Copper Design:

Thickness: 1–2 oz/ft².

Width: 0.2–0.5mm (if thicker and wider,the resistance is smaller and Heat dissipation is better).

2. LED Strip Core Components

2.1 Light-Emitting Diode (LED) Component

Structure: LED chip+Bracket+Gold Thread+Phosphor

2.2 Substrate Material

Flexible PCBs: Polyimide FPC with bend radius ≥30mm

Rigid PCB: Aluminum PCB or FR4 PCB

Advanced Materials: Ceramic substrates for high-power applications

2.3 Electronic Components

Resistor, capacitor, transistors, LED driver IC and so on.

2.4 Optical Components

Lens component and Phosphor coatings for white light generation (2700K-6500K CCT)(for COB led strip)(Specialized phosphor coatings can achieve CRI>95)

2.5 Other Materials

Protective Coating: Silicone encapsulation or tube case(IP54/IP65/IP67/IP68 rated)

Adhesive: 300LSE or 200MP or …3M Adhesive Tape

Mounting Brackets: Aluminum Bracket or Plastic Bracket

Output wires: 2 pin wire(for single color strip) or 3 Pins wire(for CCT color strip) or 4 Pins wire(for RGB strip) or 5 Pins wire(for RGBW strip)

2.6 LED Strip Accessories

Connectors:direct connector or L shape connector or T shape connector or + shape connector…

Cabling: AWG stranded wire with 0.5mm² or 0.75mm² or 1.0mm² cross-section

Adapter(LED power supply): change input voltage from 110VAC or 220VAC or 230VAC to DC12V or DC24V or DC36 or DC48V for low input voltage led strips

3. LED Strip Types

3.1 Classification by Encapsulation Types

(1) Surface Mounted Device (SMD) Encapsulation:

Technology: LEDs are soldered directly onto the PCB surface using reflow welding.

Structure: PCB+SMD LEDs+epoxy or silicone(If it is wateproof)

Advantages: Super Bright if using high bright SMD leds

IP Rating: Typically IP20 (unprotected) to IP54 or IP65 or IP67 or IP68

(2) Chip-on-Board (COB) Encapsulation:

Technology: Multiple LED chips integrated onto a single PCB substrate.

Structure: PCB+LED Chips+Silicone phosphor+epoxy or silicone(If it is wateproof)

Advantages:

Uniform high-luminance output

Better thermal management

Elimination of individual LED spacing

IP Rating: Typically IP20 (unprotected) to IP54 or IP65 or IP67 or IP68

(3) Chip-Scale Package (CSP) Encapsulation:

Technical Advantages:

Higher power density compared to traditional SMD

Better thermal management through direct heat dissipation

Improved reliability in high-bending applications

Cost-effective for mass production via automated pick-and-place processes

Features: Chip-scale packaging (thickness <0.5mm) on transparent PET/PC substrates

3.2 Classification by Protection Rating

(1) Non-Waterproof LED Strips (IP20/IP33)

Structure:

Exposed PCB or coated with conformal protective lacquer.

Protection:

IP20: Protection against solid objects ≥12.5mm (e.g., fingers), no water resistance.

IP33: Protection against spray water (60° angle from any direction).

Use Cases:

Dry indoor environments (e.g., closet lighting, TV backlighting).

(2) Drip-Proof LED Strips (IP54/IP65)

Process:

Thin epoxy/silicone coating (0.3–0.5mm thickness).

Protection:

IP54: Limited dust ingress + splash resistance (water from any direction).

IP65: Dust-tight + protection against low-pressure water jets (nozzle from any angle).

Limitations:

Splash-resistant but not submersible (e.g., bathroom mirror lighting).

(3) Fully Potted LED Strips (IP67/IP68)

Process:

Thick silicone potting (>1mm) with molded waterproof connectors.

Protection:

IP67: Dustproof + temporary submersion (1m depth, 30 minutes).

IP68: Dustproof + prolonged underwater immersion (customizable to 1–3m depth for 1–24 hours).

Testing:

Submersion up to 1m for 30 minutes (IEC 60529 compliant).

Applications: Outdoor landscape lighting, underwater fixtures (pools, fountains), and humid industrial environments.

(4) Silicone Extrusion LED Strips (IP67/IP68)

Process:

High-temperature molten silicone is extruded through a mold to form continuous, uniform encapsulation layers that protect LED chips and circuits.

Structure:

Inner Layer: LED board (flexible PCB or metal-core substrate) with LED chips.

Outer Layer: Seamless silicone jacket that fully encapsulates circuits and solder joints.

Features:

Extreme Environmental Resistance, Superior Mechanical Performance, and Optical Customization.

Applications: Underwater Scenarios etc.

3.3 Classification by Light Color

(1) Single color LED Strips

Features: emits a single, unchanging light color(warm white/cool white/red/green/blue).

Advantages: They come at a low cost, have a simple structure, and offer high stability.

(2) CCT Adjustable LED Strips

Features: Warm White+Cool White color led on one single led strip;Continuously adjusted within a range (from 2700K to 6500K). This adjustment can be done seamlessly using a controller or smart devices.

Advantages: They can adapt to different environmental needs and support smart combined with systems like Mi Home and HomeKit.

(3) RGB LED Strips

Features: By combining the three primary colors of red, green, and blue, these strips can produce over 16 million colors through a controller.

Advantages: They offer a wide range of colors and support dynamic effects.

(4) RGBW LED Strips

Features: In addition to the RGB colors, these strips include a white chip. This allows for the production of purer white light and more saturated colors.

Application Scenarios: Used in high – end commercial spaces, stage performances, and smart homes, provided the control system is compatible.

Advantages: The white light has a high color rendering index (CRI > 80 or CRI > 90), and the color transitions are more natural.

(5) RGBCCT LED Strips

Features: A multifunctional lighting solution combining RGB (Red, Green, Blue) color control with tunable white light (CCT, Correlated Color Temperature).

Advantages: Multifunctionality, Circadian Lighting, and High Color Accuracy.

(6) Special Color LED Strips

UV LED Strips: These are used for disinfection, currency verification, or creating fluorescent effects, for example, in escape rooms.

IR LED Strips: Employed in security monitoring and night photography as they emit invisible light.

3.4 Classification by Bendability

(1) Standard LED Strips: Designed with flexible PCBs (Printed Circuit Boards) or Rigid PCBs.

(2) Bendable LED Strips

Flexible Substrate Technology:
Utilizes S shape flexible PCB (Printed Circuit Board) to allow controlled bending within a certain range

Applications: Residential Decoration, Commercial Spaces, Industrial & Automotive and Creative Design.

Advantages: Space Adaptability, Space-Saving, and Creative Decoration.

3.5 Classification by Input Voltage

(1) High-Voltage LED Strips

Definition:
Directly connected to high-voltage mains (110V/220V)

Features:

Driving Method: Uses integrated constant voltage/current drivers

Installation Convenience: Simplifies wiring by eliminating the need for external power adapters.

Applications: Residential lighting, Commercial venues, and Projects requiring streamlined cabling.

(2) Low-Voltage LED Strips

Definition: Input voltage is DC12V or DC24V or DC36V
Requires an external power supply (adapter) for voltage reduction from 110VAC or 220VAC to DC12V or DC24V or DC36V

Features:

Driving Method: Relies on dedicated power adapters for safe low-voltage operation.

Safety: Operates at ≤36V, ideal for areas with frequent human contact (furniture, children’s rooms).

Applications: Safety-critical environments, Long-distance installations or expandable systems, and Precise dimming scenarios.

3.6 Classification by Driver and Voltage/Current Control Logic

(1) Constant Voltage LED Strips

Definition: A Constant Voltage (CV) LED Strip is a lighting product designed to operate at a fixed input voltage (e.g., 12V or 24V DC), with current varying dynamically based on the strip’s electrical load.

Features:

Voltage Range: Strictly matched to the power supply.

LED Configuration: Typically 3 LEDs(DC12V) or 6 LEDs(DC24V) in series per segment, creating voltage-dividing circuits.

Dimming Compatibility: Supports PWM dimming via compatible CV controllers.

Voltage Drop Sensitivity: Prone to brightness inconsistencies in long runs (>5m) without thickened wires.

Advantages: Cost-effective, Ease of Installation, and Short-Distance Efficiency.

(2) Constant Current LED Strips

Definition: A Constant Current (CC) LED Strip is a lighting solution engineered to maintain a fixed output current while allowing voltage to fluctuate dynamically based on the load.

Features:

Current Range: Matched to the power supply.

LED Configuration: LEDs arranged in parallel or hybrid series-parallel circuits to ensure uniform current distribution.

Dimming Compatibility: Supports both PWM and linear dimming via CC controllers.

Voltage Drop Tolerance: Unaffected by voltage drop in long runs (>10m) due to adaptive voltage regulation.

Advantages: Uniform Brightness, Thermal Efficiency, and Flexible Voltage Input.

3.7 Classification by SMD Led Size:

3014, 5730, 2216, 5050, 2835, 3528, 2110, 3528, 335 and so on.

3.8 Classification ‌by Direction of Light Emission:

(1) Edge-Lit LED Strip:

Emission Direction: Light Emit from the side or edge of led strip

Technology:LEDs are mounted along the edge

Advantages: High concealment, ideal for indirect lighting in cabinets, gaps, or architectural niches.

Applications: Under-cabinet lighting, TV backdrop slots, stair tread edges.

(2) Font-Lit LED Strip:

Emission Direction: Light projects forward from the strip’s exposed surface.

Technology:

LEDs face upward/forward, with optional lenses/diffusers to control beam angles.

Advantages: High brightness for direct lighting/decoration.

Applications: Ceiling coves, headboard backdrops, retail displays.

(3) Multi-Directional LED Strip:

Emission Direction: Combines multiple directions.

Technology:

LEDs are arranged on both sides or angles, leveraging reflective structures for 3D effects.

Advantages: Layered lighting for complex spaces.

Applications: Floating ceilings, art installations, automotive interiors.

(4) Adjustable LED Strip:

Emission Direction: Mechanically or modularly adjustable angles.

Technology:

LEDs mounted on swiveling brackets or segmented control systems.

Smart variants allow remote angle adjustment.

Advantages: Dynamic adaptability for changing needs.

Applications: Conference rooms, stage setups, customizable home decor.

(5) Specialized Emission Forms LED Strip:

COB Integrated Strips: Uniform, gap-free front-lit illumination.

S shape Bendable Flexible Strips: Bendable for curved surfaces with multi-angle emission.

3.9 Classification ‌by Working Principle:

(1) Analog LED Strip:

Definition: An Analog LED Strip is a lighting product controlled by continuous voltage or current signals (analog control) rather than digital protocols like PWM (Pulse Width Modulation). It offers basic brightness and color adjustment capabilities without advanced dynamic effects.

Features:

Color Capability: Monochromatic (single-color) or limited Dual – Color Temperature options.

Dynamic Effects: Unsupported; limited to static or gradual brightness changes.

Compatibility: Works with analog dimmers

Voltage Range: Typically 12V/24V DC, matching standard analog power supplies.

Advantages: Cost-effective, Smooth Dimming and Reliability.

(2) Digital LED Strip:

Definition: A Digital LED Strip is an advanced lighting solution controlled by discrete digital signals, enabling precise dynamic effects, color customization, and smart integration.

Features:

Color Capability: Supports 16 million colors (RGB/RGBWW) with precise white temperature tuning.

Dynamic Effects: Enables animations (chasing, fading, music sync) via microcontroller programming.

Smart Integration: Works with smart home systems (Wi-Fi/Bluetooth) for voice/remote control.

Voltage Range: Typically 12V/24V DC, requiring compatible digital drivers.

Advantages: Enhanced Functionality, Precision Control, and Scalability.

3.10 Classification ‌by Cuttable Length:

(1) Fixed-Cuttable LED Strip: Pre-engineered with marked intervals (e.g., every 5 cm or 10 cm) where they can be safely cut. Cutting outside these points risks damage to the circuit or LEDs. It includes a standard fixed-cuttable led strip (Cutting Interval ≤5–10cm) and a Mini Cuttable LED Strip (Cutting Interval ≤2.5cm).

Features:

Circuit Structure:

Segmented design with parallel/series connections between marked points.

Each segment operates independently after cutting.

Voltage Stability:

Requires proper termination (e.g., soldering or connectors) to maintain electrical continuity.

Applications: Linear installations and environments need precise, uniform lengths.

(2) Arbitrary-Cuttable LED Strips

Definition:

It can be cut at any position without pre-defined markers, offering maximum flexibility.

Features:

Circuit Design:

Uses redundant traces or flexible PCB layouts to ensure continuity after cutting.

May incorporate surface-mount technology (SMT) for compact, repairable connections.

Termination Options:

Often paired with adhesive-backed connectors or solderless clips for easy reconnection.

Applications: Irregular spaces and Prototyping or DIY projects requiring custom shapes.

(3) Non-Cuttable LED Strips

Definition:

Permanently sealed or integrated into fixtures, unable to be shortened.

Features:

Construction:

Encased in waterproof tubing (e.g., silicone) or embedded in rigid materials.

Pre-wired to specific lengths for fixed installations.

Application: Outdoor lighting and OEM applications.

4. LED Strip Features

(1) High Brightness & Energy Efficiency

(2) Extended Operational Lifespan & Reliability

(3) Miniaturization & Flexibility

(4) Accurate Color & Light Control

(5) Safety & Environmental Compliance

(6) Modular & Smart Integration

5.Led Strip Cost Composition

(1) Raw Material Costs (40%–60%)

LED Chips: Determine brightness, color temperature, and lifespan.

PCB Substrates: flexible PCB or Rigid PCB(FR4 or Aluminum PCB)

Electronic Components: Resistors, capacitors, and IC drivers.

(2) Manufacturing Process Costs (20%–30%)

SMD Soldering: Costs include high-speed pick-and-place machine depreciation and solder paste.

Welding Techniques: Automated lines are cheaper than manual soldering (¥0.05 per joint).

Encapsulation Processes: Potting (IP65) or sleeve-based waterproofing or ….

(3) LED Accessories Costs

Power Supplies(Adapter): 5V/12V/24V/36V LED Power supply(Adapter)

LED Controllers:Analog PWM dimmers or Digital DMX512 controllers or Smart WiFi modules

Wires: 2 Pins or 3 Pin or 4 Pins or 5 Pins Wires.

(4) Additional Costs

Packaging: Reel packaging is 10%–15% more expensive than bulk packaging.

Certifications: CE/UL approvals cost.

Logistics: International sea freight averages USD80–150 per cubic meter.

Production Scale:

Small-Batch Customization (<500m): Unit cost +30–50%

Mass Production (>10,000m): Cost reduction of 20–30% (bulk pricing, automated assembly).

Manufacturing Complexity:

Hand Soldering: USD0.08–0.15/m

SMT + Reflow: USD0.03–0.07/m

6. LED Strip Quality Evaluation

6.1 Core Photometric Performance

(1) Light Output Quality

Luminous Flux (Lumens/meter): Measure using an integrating sphere or lux meter; deviation from claimed values should be <10%.

Color Temperature Consistency (ΔCCT): Use a chroma meter to verify uniformity; high-quality strips exhibit ΔCCT <±50K.

Color Rendering Index (CRI/Ra):

Validate via spectrometer: ≥80 for commercial use, ≥95 for critical applications (museums, photography).

(2) Color Accuracy (RGB/RGBW Models)

Gamut Coverage: >90% NTSC/Adobe RGB for premium RGB strips.

White Light Purity: RGBW strips in white mode should maintain ΔCCT <3% from nominal values.

(3) Lumen Depreciation & Lifespan

LM-80 Reports: Verify LED chip data.

Empirical Testing: Luminous flux decline <5% after 72 hours of continuous operation.

6.2 Material & Construction

(1) PCB Substrate

Material:

Standard: Flexible FR4 (fiberglass) or PET.

High-power: Metal-core PCB (MCPCB, thermal conductivity ≥2.2 W/m·K).

Copper Thickness:

≥2 oz (68 μm) for current handling; inferior strips use 1 oz copper, risking overheating.

(2) LED Chips

Encapsulation:

Microscope inspection for uniform phosphor coating (eliminate color shifts).

Material:

Alloys/Pure Gold(Pure Gold is better).

Lead Frames:

Copper/Iron(copper is superior to iron, and pure copper offers superior conductivity and durability compared to copper-zinc alloy).

Width:

Thicker is better.

(3) Encapsulation & Protection

IP Rating:

IP65: Silicone conformal coating (splash-resistant).

IP68: Fully potted tubing (submersion-proof for 30 minutes).

Solder Joints:

Reflow-soldered joints must withstand >5N shear force.

6.3 Electrical & Safety Compliance

(1) Voltage Stability

Voltage Drop Test:

<0.5V drop over 5m (12V systems) or <1V (24V systems).

(2) Power Factor (PF) & Efficiency

PF: >0.9 for premium drivers; low PF (<0.5) causes grid harmonics.

System Efficacy: >80 lm/W.

(3) Certifications

Safety: UL 2108 (North America), EN 60598 (EU), GB 7000 (China).

Environmental: RoHS (lead-free), REACH (hazardous substance-free).

6.4 Real-World Testing

(1) Uniformity Evaluation: Visual Inspection and Grayscale Gradient.

(2) Thermal Management

Temperature Rise:

Infrared thermography at 25°C ambient:

Low power (<10W/m): Rise <15°C.

High power (>20W/m): Rise <30°C (requires aluminum channels).

(3) Mechanical Durability

Flex Test: Wrap around a 50mm cylinder 10 times; no open circuits or brightness loss.

Adhesion Test: 3M VHB tape must sustain a 1kg load for 24 hours without detachment.

6.5 Manufacturer Verification

(1) Supplier Credentials

(2) Warranty & Support

Coverage:

Consumer grade: 1–2 years.

Professional grade: 3–5 years.

Technical Support: Availability of IES/Dialux files, and custom driver solutions.

7. How to Select the Right LED Strip

(1) Requirement Analysis: Define functional purpose (Primary Lighting, Ambient Decoration, or Specialized Applications), environmental conditions (Indoor/Dry Areas, Kitchens/Bathrooms, or Outdoor/Submersible), and control needs (Basic, Smart Integration or Advanced Programming).

(2) Parameter Matching: Select suitable types according to brightness, CCT, voltage, and length.

(3) Validation: Test samples for color uniformity, compatibility, and thermal performance.

8. How to Power LED Strips

Powering LED strips correctly ensures optimal performance, longevity, and safety.

8.1 Determine Electrical Requirements

(1) Match Voltage: 5V, 12V, or 24V DC. Check the strip’s label or datasheet.

(2) Power Consumption

Calculate total wattage: Length (meters) × Power per Meter (W/m).

Select a power supply with 20–30% headroom.

8.2 Choose the Right Power Supply

(1) Types of Power Supplies

Plug-in Adapters: For indoor/short runs.

Switching Power Supplies: For high-power/long runs.

Dimmable Drivers: For strips with brightness control.

Waterproof PSUs: IP67-rated for outdoor/wet environments.

(2) Key Specifications

Output Voltage: This must match the strip’s voltage.

Current Rating: Ensure the PSU’s max current (A) exceeds the strip’s total current.

8.3 Wiring and Connections

(1) Direct Wiring

Strip Terminals: Use soldering or JST/SM connectors for secure joints.

Multiple Strips: Wire in parallel (not series) to avoid voltage drop.

(2) Power Injection

For long runs (>5m), add additional power feeds at intervals to prevent dimming.

8.4 Safety and Best Practices

(1) Voltage Drop Mitigation

Use thicker wires for long connections.

Opt for higher voltage (24V) strips for long installations.

(2) Heat Management

Avoid enclosing high-power strips (>15W/m) without thermal dissipation.

(3) Protection

Add a fuse between the PSU and the strip.

Use waterproof seals for outdoor installations.

9. How to Connect LED Strip

(1) Match the voltage between the strip and the power supply.

(2) Cut carefully at designated points.

(3) Secure connections with soldering or clip connectors.

(4) Test and reinforce long runs with power injection.

(5) Prioritize safety with proper insulation and heat management.

10. LED Strip Installation & Maintenance

10.1 Pre-Installation

(1) Surface Prep: Clean with alcohol, and apply 3M primer for adhesive bonding.

(2) Power Planning:

12V strips: Reinject power every 5m; 24V strips extend to 10m.

Use parallel connections for multi-segment runs.

(3) Thermal Management:

Mandatory aluminum channels for >10W/m strips.

Avoid enclosed spaces.

10.2 Controller Options

(1) Basic: RF remotes (range <10m).

(2) Smart: HomeKit/Alexa-compatible.

(3) Pro: DMX512 controllers.

10.3 Troubleshooting

(1) Dimming at Ends: Voltage drop → Shorten runs or add power injection.

(2) Color Inaccuracy: Verify controller protocol (SPI vs. PWM).

(3) Dead Sections: Broken solder joints → Repair with conductive adhesive.

11. LED Strip Applications

(1) Architecture & Interior Design: Architectural Contour Lighting, Ambient Indoor Lighting, Commercial Spaces.

(2) Retail & Display: Product Highlighting, Signage & Advertising, Hospitality Lighting.

(3) Residential & Smart Homes: Functional Lighting, Decorative Accents, Smart Integration: Wi-Fi/Bluetooth connectivity (e.g., Philips Hue) for voice control and scene automation.

(4) Automotive & Transportation: Interior Ambient Lighting, Exterior Styling, Traffic Guidance.

(5) Entertainment & Media Production: Stage Lighting, Film/Photo Lighting, Theme Parks.

(6) Industrial & Warehousing: Task Lighting, Safety Indicators, Equipment Status.

(7) Healthcare & Wellness: Surgical Lighting, Phototherapy, Healing Environments.

(8) Agriculture & Vertical Farming: Plant Growth Lighting, Vertical Farms, Aquaculture.

(9) Public Infrastructure & Urban Lighting: Smart Streetlights, Transit Guidance, Energy Retrofits.

(10) Art & Creative Installations: Interactive Art, Kinetic Sculptures, Fashion Tech.

12. LED Strip Best Manufacturers

There are plenty of LED strip brands in the world, below is a list of some of the famous manufacturers.

Philips

Cree Lighting

Osram

Nichia

Panasonic

Simon

Unilumin

Refond

Opple

RISHANG

…

Besides the above manufacturers, you can also choose Y&T Technology Development Co.,Ltd.

Our company is a professional manufacturer of led strip for more than 11 years, with high quality, fast delivery, and competitive price. Our products are backed by a three-year limited warranty. For technical support or customization requests, please contact us.

13. LED Strip FAQs

14. Summary

The applications of LED strips have extended beyond traditional lighting scenarios to cutting-edge fields such as smart IoT, industrial manufacturing, and life sciences. Moreover, their technological boundaries continue to expand alongside advancements in materials science and artificial intelligence. Looking ahead, breakthroughs in flexible displays and energy storage technologies are poised to transform LED strips into critical interfaces connecting the physical and digital worlds.

COB led strips and SMD led strips are commonly utilized in modern life. But how much do you really know about them?

In this guide, I will show you elaborate knowledge of COB led strips and SMD led strips, including their definitions, features, technical/connecting/powering/installation comparisons, pros and cons, applications, when to use, and common problems.

1. What is COB Led Strip Light

(1) Definition

COB (Chip On Board) LED Strip refers to a type of LED lighting technology utilizing Chip-on-Board (COB) manufacturing processes. It involves placing LED chips directly onto a circuit board, bypassing the need for individual lamp beads, creating a seamless, high-density arrangement of light-emitting units.

(2) Features

Simplified Structure: Replaces traditional packaging processes, making it simpler and lower costs.

Enhanced Brightness and Contrast: Achieves higher luminance and contrast ratios compared to conventional LEDs.

Energy Efficiency: Costs lower power consumption for less energy loss and optimized thermal management.

Durability: The compact design minimizes the risk of damage from external factors like moisture.

2. What is SMD Led Strip Light

2.1 Definition

SMD stands for Surface-Mounted Device, referring to LED chips directly soldered onto a flexible printed circuit board (PCB).

2.2 Features

(1) Design and Structure:

Individual Diodes: Each LED is a separate unit soldered onto the PCB.

Modular Layout: Diodes are spaced evenly along the strip, creating visible light points.

Flexible PCB: Allows bending and cutting (at marked intervals) for custom installations.

(2) Light Quality:

Beam Angle: Typically 120°.

Brightness: Higher lumen output per watt.

Color Options: Available in single color or RGB/RGBW for dynamic lighting.

(3) Energy Efficiency:

Optimized for high brightness with lower power consumption.

3. What are the Technical Comparisons between COB Led Strip and SMD Led Strip?

(1) Structure:

COB Led strip: Uses Chip-on-Board technology, embedding LED chips directly onto the substrate.

PCB+LED Chips+Silicone phosphor+epoxy/silicone(If it is waterproof)

SMD Led strip: Feature individual surface-mounted diodes with visible light points.

PCB+SMD LEDs+epoxy/silicone(If it is waterproof)

(2) Optical Performance

Parameter	COB LED Strips	SMD LED Strips
Luminous Efficacy	120–150 lm/W (high-power COB up to 200 lm/W)	80–120 lm/W (standard 5050 SMD)
Brightness Uniformity	Single-chip design minimizes hotspots (±5%)	Multiple SMDs may create visible brightness variations (±15%)
Color Consistency	Integrated phosphor coating ensures tight binning	Discrete SMDs require strict binning for uniformity

(3) Thermal Management

COB Led Strip:

Generate concentrated heat due to densely packed chips and use low thermal resistance materials (chip-to-aluminum substrate) for effective dissipation.

SMD Led Strip:

Spread heat across a larger PCB area, reducing localized overheating. Require additional simpler heat sinks.

(4) Flexibility Design

COB Led Strips:

Ultra-thin, flexible design (no bulky diodes) for seamless integration into tight spaces.

No exposed gold wires, reducing the risk of corrosion or damage.

SMD Led Strips:

Thicker profile due to individual diodes but offers customizable color temperatures and RGB options.

Easier to cut and reconfigure at marked intervals.

(5) Lifespan & Reliability

COB Led Strip:

Longer lifespan (up to 50,000 hours) with slower light degradation.

Less prone to solder joint failures due to fewer components.

SMD Led Strips:

An average lifespan of 50,000 hours (dependent on chip quality).

Higher risk of single-LED failure in dense configurations.

(6) Cost

COB Led Strip:

Higher upfront cost (complex manufacturing) but lower long-term maintenance.

Lower maintenance costs due to fewer failure points.

SMD Led Strips:

Cost-effective for short runs and temporary installations.

Potential long-term expenses from LED replacements.

Summary Table
Feature	COB LED Strips	SMD LED Strips
Structure	Use Chip-on-Board technology, embedding LED chips directly onto the substrate.	Feature individual surface-mounted diodes with visible light points.
Light Uniformity	Dotless, seamless beam	Visible light points
Beam Angle	180°	120°
Energy Efficiency	Lower power consumption	Higher lumen/watt efficiency
Durability	Longer lifespan, better heat management	Moderate lifespan, simpler cooling
Flexibility Design	Ultra-thin, ideal for tight spaces	Thicker, but easier to cut/reconfigure
Cost	Higher initial cost	Budget-friendly

4. What are the Advantages and Disadvantages of COB Led Strips?

4.1 Advantages:

(1) Superior Light Uniformity

Monolithic chip design eliminates visible light points.

180° diffusion minimizes shadows.

(2) High Brightness and Energy Efficiency

COB strips achieve high lumen output with lower power consumption due to reduced energy loss in the integrated design.

(3) Durability and Longevity

Extended Lifespan: With lifespans of 50,000+ hours, COB strips outlast many SMD alternatives.

Fewer Failure Points: Reduced solder joints lower the risk of single-component failure.

(4) Space-Saving Design

Ultra-Thin and highly flexible Profile: 1.6mm rigid PCB allows flush mounting in confined spaces. And allows installation in tight spaces like curved surfaces or corners.

No Exposed Components: Gold wires are embedded, preventing corrosion in harsh environments.

(5)Wide Voltage Compatibility

Most COB strips support 5V, 12V, or 24V power inputs.

4.2 Disadvantages:

(1) Higher Upfront Cost

COB strips are pricier due to complex manufacturing.

(2) Heat Concentration

Poor thermal management can shorten lifespan.

(3) Limited Customization

Fixed color temperatures and configurations limit design flexibility (e.g., warm white, cool white).

(4) Fragility During Installation

Thin, flexible designs can be easily damaged during handling.

(5) Repair Challenges

Damaged sections are harder to repair compared to SMD strips, as COB’s integrated design makes individual LED replacements impractical.

5. What are the Advantages and Disadvantages of SMD Led Strips?

5.1 Advantages:

(1) Cost-Effective

SMD strips are cheaper to produce and purchase.

Simplified manufacturing reduces component costs.

(2) Wide Range of Color Options

Adjustable LED spacing and RGB/RGBW color options.

Bendable up to 5mm radius, ideal for curved surfaces or confined spaces.

(3) Repairability

Modular Replacement: A single SMD LED can be desoldered and replaced.

Easy Cutting: Pre-marked segments allow quick length adjustment without damaging the circuit.

(4) High Brightness with Good Efficiency

SMD LED strips achieve high lumen output with decent energy efficiency.

(5) Simplified Heat Dissipation

Heat spreads across the wider PCB surface, reducing the risk of localized overheating. Works well with basic aluminum channels or heat sinks.

(6) Diverse Applications

Versatile Lighting: Common in home decor, automotive lighting, and signage.

High Color Rendering: CRI≥90 options available for accurate color representation.

5.2 Disadvantages:

(1) Visible Light Dots and Hotspots

Individual LEDs create uneven light distribution, especially in reflective environments.

(2) Shorter Lifespan

Typically it lasts approximately 45,000–50,000 hours. Prolonged high-temperature use accelerates degradation.

(3) Narrower Beam Angle

A standard 120° beam angle limits coverage, requiring more strips for wide-area illumination.

(4) Less Durable in Harsh Conditions

Exposed diodes and solder points make them prone to damage from moisture, dust, or physical impacts unless properly sealed.

(5) Complex Repairs and Higher Maintenance

Fixing a faulty section often requires soldering skills, and mismatched batches can cause color/temperature inconsistencies.

One defective SMD may require replacing the entire segment.

Double-sided tape loses adhesion faster in high-temperature settings.

(6) Power Limitations

Lower Brightness: Maximum 170 lm/W (standard 80–120 lm/W), unsuitable for high-lux environments.

Voltage Drop Risks: Long runs may require additional power injection to prevent voltage drop and dimming at the strip’s end.

6. What are the Comparisons between COB Led Strip and SMD Led Strip Application Scenarios?

6.1 Residential Lighting

(1) COB LED Strips

Best For:

Seamless Ambient Lighting: Spots like stair accents where uniform, glare-free illumination is important.

High-End Decor: Modern interiors such as luxury bathrooms require a clean, dotless appearance.

Indirect Lighting: Behind TVs or mirrors for smooth backlighting without visible hotspots.

(2) SMD LED Strips

Best For:

Decorative Accents: Color-changing RGB strips for gaming setups, or holiday decorations.

Task Lighting: Under-cabinet lighting in workshops where brightness is prioritized over uniformity.

DIY Projects: Customized installations like bookshelves that can easily be cut and reconfigured.

6.2 Commercial and Retail Spaces

(1) COB LED Strips

Best For:

Premium Displays: Museum exhibits and jewelry cases requiring flawless, shadow-free lighting.

Architectural Highlighting: Accent lighting for curved surfaces, and columns with a seamless glow.

Hospitality: Hotels or restaurants aiming for a luxurious ambiance with hidden light sources.

(2) SMD LED Strips

Best For:

Cost-Effective Signage: Backlit signs or menu boards where visible light points are acceptable.

General Illumination: Warehouse or office task lighting with high brightness at a lower cost.

Event Lighting: Concerts or weddings using RGB strips for dynamic color effects.

6.3 Automotive and Transportation

(1) COB LED Strips

Best For:

Interior Mood Lighting: Car cabins or yachts where slim, durable strips with smooth light enhance aesthetics.

Exterior Accents: License plate lighting or underbody accents requiring weather-resistant, compact designs.

(2) SMD LED Strips

Custom Car Mods: Underglow lighting or DIY automotive projects using RGB strips for vibrant effects.

Trucks/Buses: Functional lighting like step lights where durability and affordability matter more than uniformity.

6.4 Outdoor and Industrial Use

(1) COB LED Strips

Best For:

Architectural Landscaping: Pathways or water features where waterproof, seamless lighting is needed.

Industrial Displays: High-precision environments like labs requires consistent, durable illumination.

(2) SMD LED Strips

Best For:

Outdoor Festivals: Temporary installations like Christmas lights, and party tents using waterproof RGB strips.

Workshops/Garages: Task lighting with high brightness and replaceable sections if damaged.

6.5 Specialized Applications

(1) COB LED Strips

Best For:

Medical Lighting: Surgical or diagnostic equipment needing flicker-free, high-CRI light.

Aviation/Transport: Aircraft cabin lighting with ultra-thin, vibration-resistant designs.

(2) SMD LED Strips

Best For:

Entertainment: Themed attractions such as escape rooms, and theaters using RGB for immersive effects.

Agriculture: Grow lights with tunable spectra for plant growth (using specialized SMD chips).

7. When to Choose COB Led Strips/SMD Led Strips?

7.1 Choose COB LED Strips When…

7.2 Choose SMD LED Strips When…

8. What are the Differences between COB Led Strips and SMD Led Strips When Connecting/Powering/Installing?

8.1 COB LED Strips

(1) Pre-Installation Preparation: Measure the Area, clean the Surface, and test the Strip.

(2) Cutting the COB LED Strip at Marked Intervals.

(3) Wiring and Connections

Option A: Soldering

Strip the wire ends (1–2mm).

Tin the tiny copper pads on the COB strip with solder.

Solder wires to the pads.

Cover joints with heat shrink tubing to insulate.

Option B: Solderless Connectors

Use COB-specific connectors for tool-free installation.

Slide the strip into the connector and clamp tightly.

(4) Mounting the Strip

Peel the adhesive backing and press the strip firmly onto the surface (For curved surfaces, use mounting clips instead of adhesive).

Install aluminum channels.

Secure channels with screws or adhesive.

(5) Powering the COB LED Strip

Use a constant-current driver to match the strip’s voltage and wattage.

Avoid daisy-chaining multiple strips—connect in parallel for long runs.

For waterproof installations (IP65/IP67).

(6) Testing

Turn on the power and check for uniform brightness and secure connections.

8.2 SMD LED strip

(1) Pre-Installation Preparation: Measure the Area, clean the Surface, and test the Strip

(2) Cutting the SMD LED Strip:

Cut at marked intervals (scissor icons).

Use sharp scissors for a clean cut through the copper pads.

(3) Wiring and Connections

Option A: Soldering

Strip the wire ends (1–2mm) and tin them with solder.

Tin the exposed copper pads on the SMD strip.

Solder wires to the pads, matching polarity.

Insulate connections with heat shrink tubing or electrical tape.

Option B: Solderless Connectors

Use snap-on connectors.

Open the connector, align the strip’s copper pads, and clamp it shut.

(4) Mounting the Strip

Peel the adhesive backing and press the strip firmly onto the surface (For curved surfaces, use mounting clips or flexible aluminum channels).

Use aluminum channels(optional)

Secure channels with screws or adhesive.

(5) Powering the SMD LED Strip

Use a constant-voltage driver.

Avoid voltage drop

For RGB/RGBW strips: Connect a controller between the power supply and the strip.

(6) Testing

Power on the strip and check for:

Consistent brightness.

Proper color output (for RGB models).

COB vs SMD Installation Differences
Aspect	COB LED Strip	SMD LED Strip
Cutting Flexibility	Limited to marked intervals (5–10 cm)	Cut every 3 LEDs or 5 cm
Heat Management	Mandatory aluminum channels	Optional aluminum channels for high-power
Wiring	Tiny pads, challenging soldering	Larger solder pads, easier connections
Adhesive Strength	Weak adhesive, often needs extra clips	Strong 3M backing holds well
Voltage Drop	Less prone due to integrated design	Common in long runs (requires injection)

9. COB Led Strips/SMD Led Strips FAQs

10. Summary

The LED lighting industry continues to evolve, driven by demands for energy efficiency, aesthetic versatility, and advanced performance. Market trends indicate parallel growth: COB adoption surges in high-brightness, precision-driven environments, while SMD retains its stronghold in volume-driven, decorative applications. Innovations in miniaturization and hybrid designs further blur traditional boundaries, suggesting a future where both technologies coexist, addressing divergent performance and budgetary requirements across global markets.

From the pictures,you can see clearly: How to connect our RGB flexible led strips made of 60pcs 5050smd led per meter to our IR led controller and our Amplifier and Meanwell Power supply;
